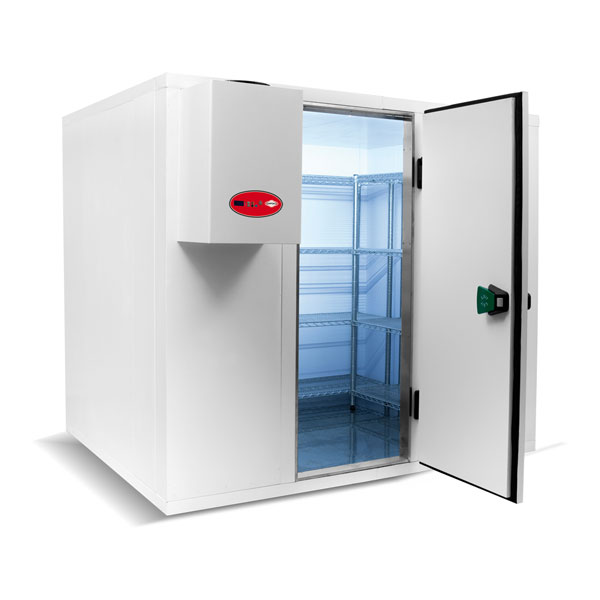

Monoblock Modular Cold Room

General Specifications:

- Vapor Proof Light - 304 Stainless Steel Plate - 10 cm Thick Foamed-In-Place Polyurethane Insulation

Code Description Dimensions (mm) Net
a b c m3
LEN.CR.121220 Monoblock Modular Cold Room 1200x1200x2000 1.8
LEN.CR.121520 Monoblock Modular Cold Room 1200x1500x2000 2.34
LEN.CR.121820 Monoblock Modular Cold Room 1200x1800x2000 2.88
LEN.CR.122220 Monoblock Modular Cold Room 1200x2200x2000 3.6
LEN.CR.122520 Monoblock Modular Cold Room 1200x2500x2000 4.14
LEN.CR.122820 Monoblock Modular Cold Room 1200x2800x2000 4.68
LEN.CR.123220 Monoblock Modular Cold Room 1200x3200x2000 5.4
LEN.CR.151520 Monoblock Modular Cold Room 1500x1500x2000 3.04
LEN.CR.151820 Monoblock Modular Cold Room 1500x1800x2000 3.74
LEN.CR.152220 Monoblock Modular Cold Room 1500x2200x2000 4.68
LEN.CR.152520 Monoblock Modular Cold Room 1500x2500x2000 5.38
LEN.CR.152820 Monoblock Modular Cold Room 1500x2800x2000 6.08
LEN.CR.153220 Monoblock Modular Cold Room 1500x3200x2000 7.02
LEN.CR.181820 Monoblock Modular Cold Room 1800x1800x2000 4.6
LEN.CR.182220 Monoblock Modular Cold Room 1800x2200x2000 5.76
LEN.CR.182520 Monoblock Modular Cold Room 1800x2500x2000 6.6
LEN.CR.182820 Monoblock Modular Cold Room 1800x2800x2000 7.48
LEN.CR.183220 Monoblock Modular Cold Room 1800x3200x2000 8.64
LEN.CR.222220 Monoblock Modular Cold Room 2200x2200x2000 7.2
LEN.CR.222520 Monoblock Modular Cold Room 2200x2500x2000 8.28
LEN.CR.222820 Monoblock Modular Cold Room 2200x2800x2000 9.36
LEN.CR.223220 Monoblock Modular Cold Room 2200x3200x2000 10.8
LEN.CR.252520 Monoblock Modular Cold Room 2500x2500x2000 9.52
LEN.CR.252820 Monoblock Modular Cold Room 2500x2800x2000 10.76
LEN.CR.253220 Monoblock Modular Cold Room 2500x3200x2000 12.42
LEN.CR.282820 Monoblock Modular Cold Room 2800x2800x2000 12.16
LEN.CR.283220 Monoblock Modular Cold Room 2800x3200x2000 14.04
LEN.CR.323220 Monoblock Modular Cold Room 3200x3200x2000 16.2
Code Description Dimensions (mm) Net
a b c m3
LEN.CR.121222 Monoblock Modular Cold Room 1200x1200x2200 2
LEN.CR.121522 Monoblock Modular Cold Room 1200x1500x2200 2.6
LEN.CR.121822 Monoblock Modular Cold Room 1200x1800x2200 3.2
LEN.CR.122222 Monoblock Modular Cold Room 1200x2200x2200 4
LEN.CR.122522 Monoblock Modular Cold Room 1200x2500x2200 4.6
LEN.CR.122822 Monoblock Modular Cold Room 1200x2800x2200 5.2
LEN.CR.123222 Monoblock Modular Cold Room 1200x3200x2200 6
LEN.CR.151522 Monoblock Modular Cold Room 1500x1500x2200 3.38
LEN.CR.151822 Monoblock Modular Cold Room 1500x1800x2200 4.16
LEN.CR.152222 Monoblock Modular Cold Room 1500x2200x2200 5.2
LEN.CR.152522 Monoblock Modular Cold Room 1500x2500x2200 5.98
LEN.CR.152822 Monoblock Modular Cold Room 1500x2800x2200 6.76
LEN.CR.153222 Monoblock Modular Cold Room 1500x3200x2200 7.8
LEN.CR.181822 Monoblock Modular Cold Room 1800x1800x2200 5.12
LEN.CR.182222 Monoblock Modular Cold Room 1800x2200x2200 6.4
LEN.CR.182522 Monoblock Modular Cold Room 1800x2500x2200 7.36
LEN.CR.182822 Monoblock Modular Cold Room 1800x2800x2200 8.32
LEN.CR.183222 Monoblock Modular Cold Room 1800x3200x2200 9.6
LEN.CR.222222 Monoblock Modular Cold Room 2200x2200x2200 8
LEN.CR.222522 Monoblock Modular Cold Room 2200x2500x2200 9.2
LEN.CR.222822 Monoblock Modular Cold Room 2200x2800x2200 10.4
LEN.CR.223222 Monoblock Modular Cold Room 2200x3200x2200 12
LEN.CR.252522 Monoblock Modular Cold Room 2500x2500x2200 10.58
LEN.CR.252822 Monoblock Modular Cold Room 2500x2800x2200 11.96
LEN.CR.253222 Monoblock Modular Cold Room 2500x3200x2200 13.8
LEN.CR.282822 Monoblock Modular Cold Room 2800x2800x2200 13.52
LEN.CR.283222 Monoblock Modular Cold Room 2800x3200x2200 15.6
LEN.CR.323222 Monoblock Modular Cold Room 3200x3200x2200 18
Code Description Net
m3
LEN.SG.2-5-P Monoblock Cooling Group (+) 2-5
LEN.SG.5-10-P Monoblock Cooling Group (+) 5-10
LEN.SG.10-18-P Monoblock Cooling Group (+) 10-18
LEN.SG.2-5-N Monoblock Cooling Group (-) 2-5
LEN.SG.5-10-N Monoblock Cooling Group (-) 5-10
LEN.SG.10-18-N Monoblock Cooling Group (-) 10-18
