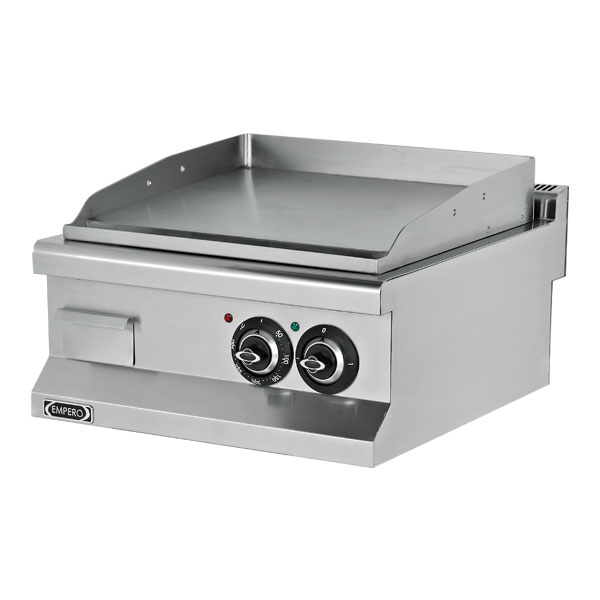

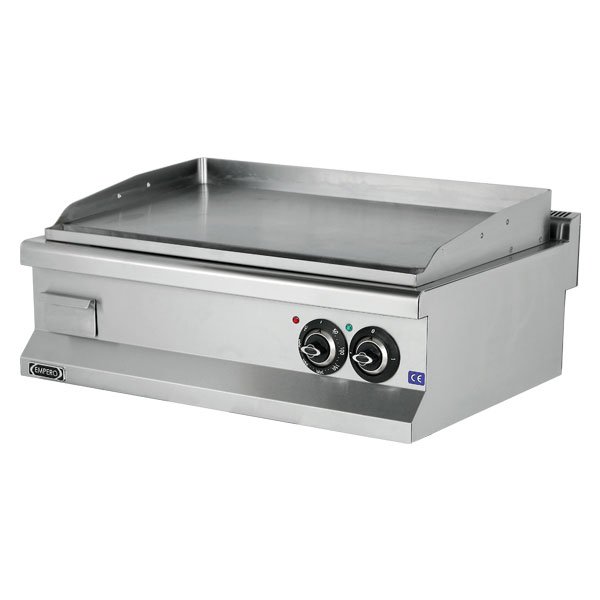

Electrical Grills

General Specifications:

- Thermostatic controller. - Two separate heating zones. - Removable oil collection drawer - Easy to clean and hygienic. - Top plate thickness 1.2 mm, body 1 mm stainless steel. - Limit thermostat. LEN.6IE010 / LEN.6IE011 - Electric Input: 400V AC 3N PE - Cable Cross Section (mm2): 5x2,5 LEN.6IE020 / LEN.6IE021 / LEN.6IE022 - Electric Input: 400V AC 3N PE - Cable Cross Section (mm2): 5x2,5 LEN.6IE030 / LEN.6IE031 / LEN.6IE032 - Electric Input: 400V AC 3N PE - Cable Cross Section (mm2): 5x4

Code Description Dimensions (mm) Weight Net Power
a b c kg m3 kw
LEN.6IE010 Electric Grill-Smooth Plate 400x635x285 45 0.11 3.6
LEN.6IE011 Electric Grill-Complete Ribbed Plate 400x635x285 45 0.11 3.6
LEN.6IE020 Electric Grill-Smooth Plate 600x635x285 58 0.17 7.2
LEN.6IE021 Electric Grill-Complete Ribbed Plate 600x635x285 58 0.17 7.2
LEN.6IE022 Electric Grill-Smooth+Ribbed Plate 600x635x285 58 0.17 7.2
LEN.6IE030 Electric Grill-Smooth Plate 900x635x285 87 0.24 10.8
LEN.6IE031 Electric Grill-Complete Ribbed Plate 900x635x285 87 0.24 10.8
LEN.6IE032 Electric Grill-Smooth+Ribbed Plate 900x635x285 87 0.24 10.8
